3G

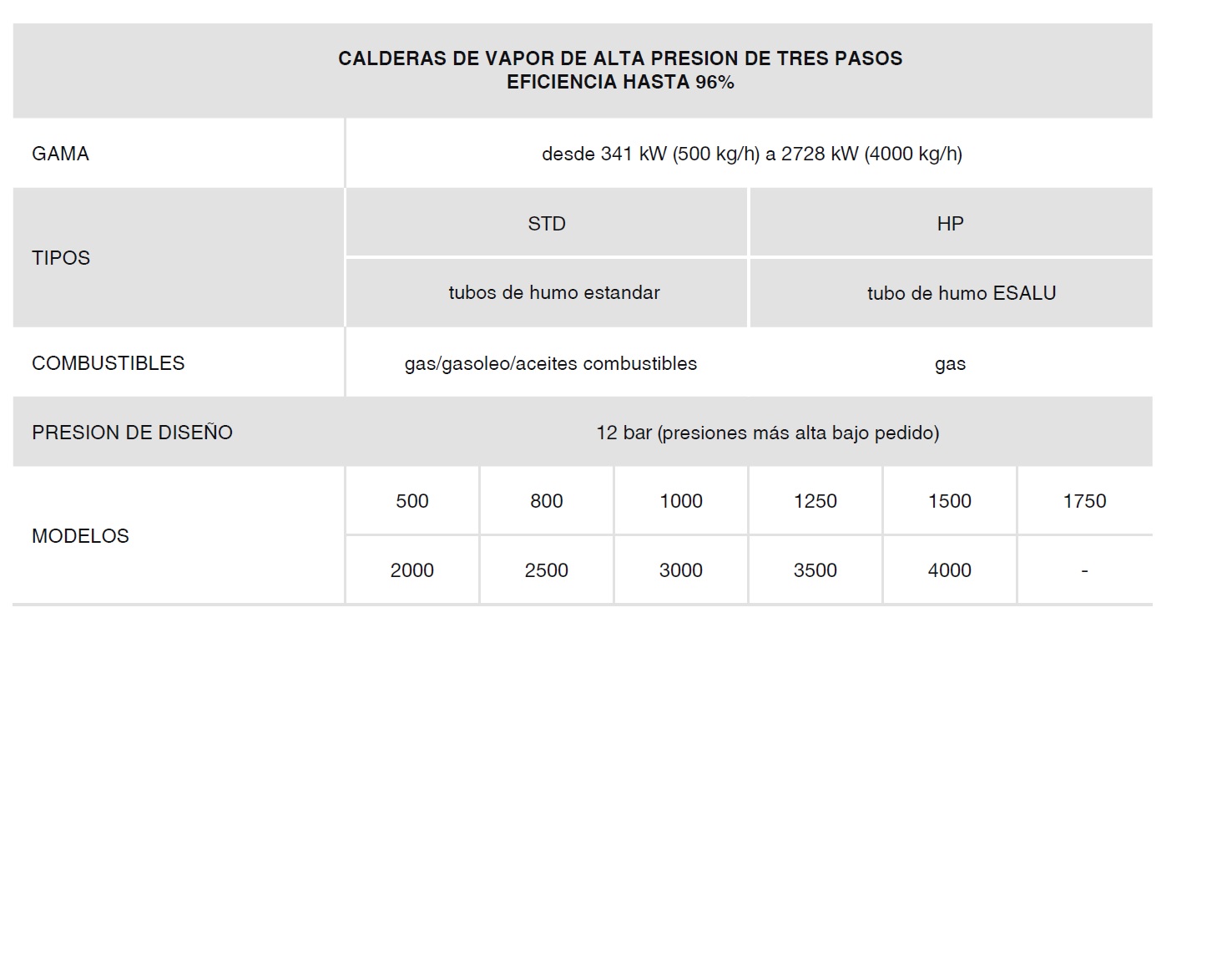

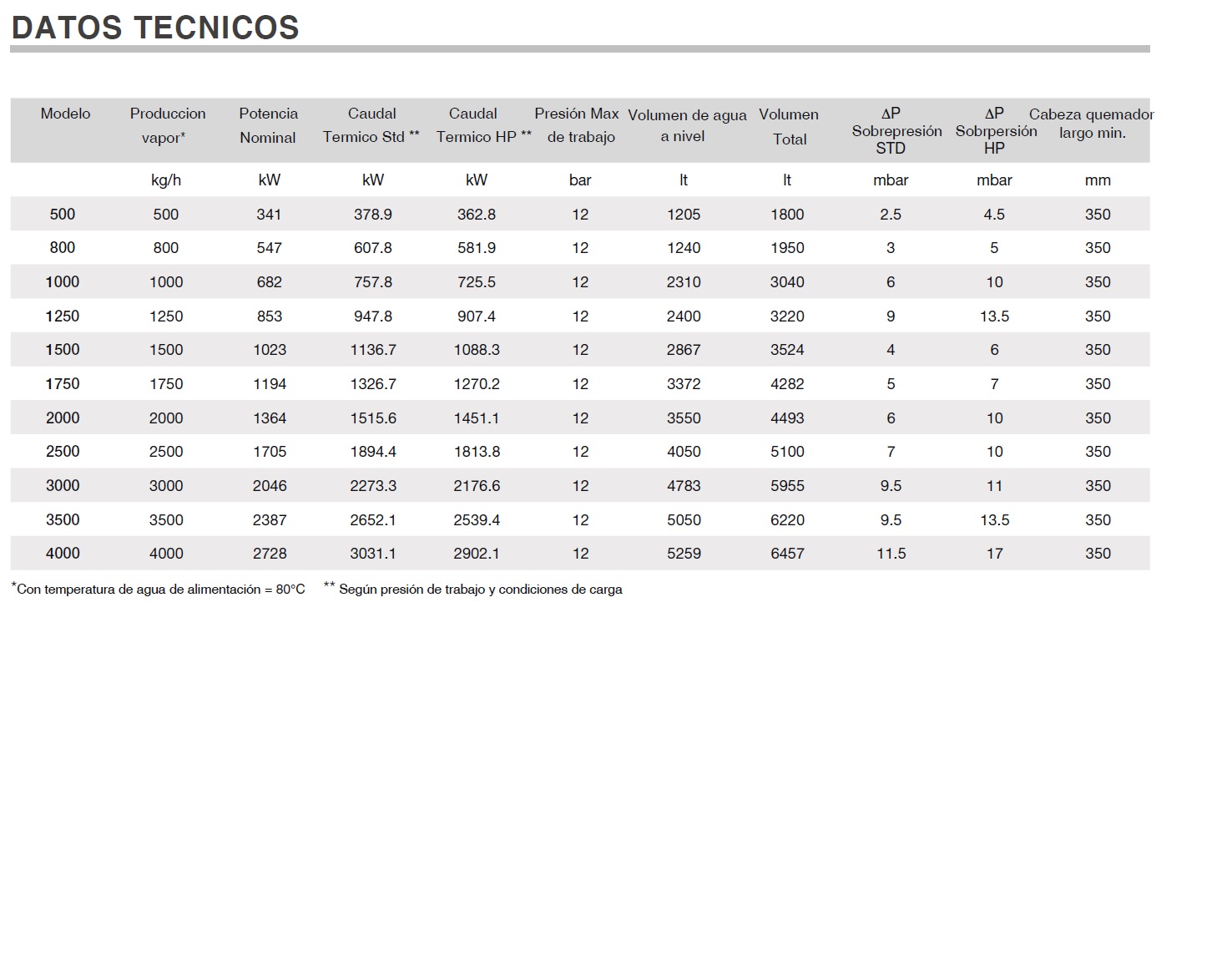

A RANGE OF 11 MODELS, FROM 341 Kw (500 Kg/h) to 2,728 Kw (4,000 Kg/h) and up to 12 bar pressure or even more, according to specific requirements.

Efficiency up to 96% depending on model.

• Category I and II boilers, according to power and pressure.
• Fire tube boiler with 3 smoke passages: 1 per hearth where complete combustion is carried out and 2 through the smoke tubes, to optimize heat exchange and emissions.
• It can burn any type of liquid or gaseous fuels.
• The flue tubes are made of high-quality steel, welded to the tube plates by qualified automatic procedures and finished by reaming to remove the plate protrusions. Category I and II boilers, according to power and pressure.
• The dry steam obtained by the good relation between the volume of the water level and the steam chamber gives this boiler a high vapor quality.
• The appliance is sized to guarantee low thermal loads and low pollution emissions (when equipped with a Low NOx burner).
• At the top of the boiler there is a large manhole, which allows the operator access to the wet area of the boiler.
• At the bottom is a DN150 inspection.
• Adaptable to any brand of burner.
• The boiler can be adapted for right-hand or left-hand control.
• Functions can be implemented with optional kits also with already installed boilers.
• Stainless steel vertical electric pump unit with low consumption and high pressure and flow.
• Water level controls in the boiler by means of electronic probes.
• The manufacturing materials are carefully selected to ensure the best quality and durability of the boilers.
• Large diameter fire box with low thermal load, which is pressurised for combustion, complying with environmental regulations.
• Our design results in boilers with a low thermal load and a reduced level of atmospheric pollutants (NOx and CO).
• Rear smoke chamber: built in welded steel sheet covered externally with a layer of insulating material.
• Water-cooled fire box, accessible from the outside.
• Entrance door: built in welded steel plate, lined on the inside with layers of insulating and refractory cement. Mounted on hinges that allow quick opening.
• It is equipped with a pipe inspection and cleaning door, a horizontal axis flue connection with a diameter suitable for the generator power.
• Prepared for connection to removable internal economizer.
• Efficient thermal insulation of high thickness of mineral rock wool, agglomerate with high density of thermosetting resins, supported and protected externally with an aluminum support. Separation between the hot parts of the boiler body and the casing to eliminate heat bridges.
• The exterior finish of the boiler is 10/10 mm painted sheet metal. of thickness.
• Service walkway: located in the upper part of the generator, it consists of a steel profile frame, covered with a grooved plate on the floor of the walkway and (on request) completed by a parapet with handrails and access ladder in accordance with the standard EN ISO 14122 standard. (according to models).
• Electrical connections with quick-fit connectors.
• Expandable electromechanical and electronic control panels (optional).
• The intuitive electric control panel indicates at all times the status of the boiler.
• The boilers can leave our workshops with 2-, 24- or 72-hour surveillance control, depending on the needs of each client, and under TRD 604 safety standards.
• The boilers leave our workshops mounted on a metal base that forms a set with the other accessories, making a quick installation easy.
• Certified manufacture under PED 97/23CE.
• Throughout the manufacturing process, the boiler is evaluated by an Authorized Control Body (OCA) to receive the CE Marking verification.
• Optional components to be fitted in the boilers:
  • 7”PLC control panel.
  • Salt purge system.
  • Sludge purge system.
  • 24 or 72-hour safety kit.
  • 2nd feed pump kit.
  • Economizer Kit – Performance increase: 4%
  • Water supply modulation kit.
  • Boiler sampling kit.
  • Kit for protection against dry running of the water pump.
  • Web remote control kit via 3G or ADSL.
